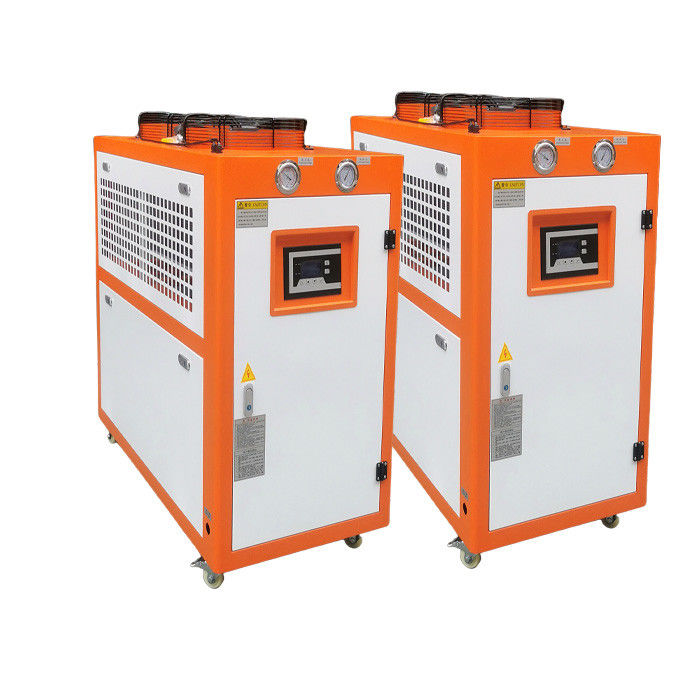

2HP Air Cooled Water Chiller Small Water Chiller Injection Molding Mold Forming
Product Description:
A small air-cooled chiller is a piece of equipment used for refrigeration, usually in small to medium sized commercial or industrial applications. It uses a fan to blow ambient air across the cooler, which removes heat from the chiller and allows the coolant to circulate, reducing the temperature.
Small air-cooled chillers typically include a compressor, a condenser, an expansion valve, and an evaporator. The compressor compresses the refrigerant into a high-pressure gas, which is then sent to the condenser, where a fan blows the surrounding air through it, thereby removing the heat. The refrigerant becomes a low-pressure liquid and then enters the expansion valve, where the reduced pressure causes the refrigerant to evaporate, absorbing heat, which cools the water or other fluid in the evaporator.
Small air-cooled chillers are easier to install and maintain than water-cooled chillers because they don't require pumps, cooling towers, or water piping. However, they usually require more space to be placed because they need enough space to dissipate heat.
Working Principle:
The working principle of the small air-cooled chiller is similar to that of a general refrigeration cycle system, and its main components include a compressor, a condenser, an expansion valve, and an evaporator.
1.Compressor: The compressor is the core component of the chiller, and its function is to compress the refrigerant into a high-pressure gas. High-pressure gas generates heat during compression, which needs to be discharged through the condenser.
2.Condenser: The condenser is a component used to dissipate heat from the refrigerant. When the high-pressure gas passes through the condenser, the surrounding air is blown by the fan, which lowers the temperature of the refrigerant and discharges the heat. In this way, the refrigerant changes from a high-pressure gas to a low-pressure liquid.
3.Expansion Valve: An expansion valve is a small throttling device that controls the flow of refrigerant. When the refrigerant passes through the expansion valve, the pressure and temperature of the refrigerant will decrease due to the shrinkage of the valve, so that the refrigerant becomes a low-pressure liquid.
4.Evaporator: An evaporator is a component used to cool water or other fluids. When the refrigerant enters the evaporator, it absorbs heat from the evaporator, causing the temperature of the water or other fluid in the evaporator to drop. The refrigerant becomes a high-pressure gas again, and a new refrigeration cycle begins.
During the entire refrigeration cycle, the fan plays a very important role. It discharges heat by blowing the surrounding air through the condenser, so that the refrigerant can be continuously cooled and depressurized in the cycle, and it also ensures that the refrigerant is evaporated. The heat absorption effect in the device.
Techinical Parameters:
| Model |
RX-1HP |
RX-2HP |
RX-3HP |
RX-4HP |
RX-5HP |
RX-6HP |
RX-8HP |
RX-10HP |
| Cooling capacity |
KW/h |
3.1 |
6.2 |
9.3 |
12.4 |
15.5 |
18.6 |
24.8 |
31 |
| Kcal/h |
2,700 |
5,400 |
8,100 |
10,800 |
13,500 |
16,200 |
21,600 |
27,000 |
| Temperature range |
5℃-35℃(Below 0℃ can be customized) |
| Power supply |
1PH-220V 50HZ/60HZ 3PH-380V/415V 50HZ/60HZ |
| Total power |
KW |
1.21 |
2.03 |
2.84 |
3.7 |
4.5 |
5.7 |
7.33 |
8.83 |
| Compressor |
Type |
|
Hermetic scroll type or piston |
| Power |
KW |
0.75 |
1.50 |
2.25 |
3.00 |
3.75 |
4.50 |
6.00 |
7.50 |
| Circulating pump |
Power |
KW |
0.375 |
0.375 |
0.375 |
0.375 |
0.75 |
0.75 |
0.75 |
1.5 |
| Head |
m |
22 |
22 |
22 |
22 |
23 |
23 |
23 |
21.5 |
| Refrigerant |
Type |
|
R22/R407c/R134a/R410a |
| Control method |
|
Temperature Sensing External Pressure Equalizing Expansion Valve |
| filling volume |
Kg |
0.50 |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
4.00 |
5.00 |
| Evaporator |
Flow |
m³/h |
0.82 |
0.98 |
1.45 |
1.88 |
2.42 |
2.92 |
3.75 |
4.85 |
| water capacity |
m³ |
0.028 |
0.04 |
0.05 |
0.05 |
0.065 |
0.065 |
0.13 |
0.18 |
| Diameter |
inch |
1/2" |
3/4" |
1" |
1-1/2" |
1-1/2" |
| Condensator |
Type |
Efficient brass sets corrugated aluminum fin |
| Fan |
Type |
Axial flow |
| air volume |
m³/h |
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
8000 |
10000 |
| Protective device |
High and low pressure switch, antifreeze protection, fusible plug/safety valve, overload protection device, coil overheat protector, automatic temperature protection switch, etc. |
| Machine size |
L |
mm |
680 |
800 |
1040 |
1140 |
1140 |
1200 |
1400 |
1400 |
| W |
mm |
420 |
480 |
555 |
620 |
620 |
650 |
725 |
725 |
| H |
mm |
720 |
850 |
1060 |
1200 |
1200 |
1160 |
1450 |
1450 |
| Unit weight |
Kg |
60 |
90 |
130 |
140 |
170 |
210 |
270 |
350 |
Application Industry:
It is widely used in pharmaceutical, chemical, food, grease, coating, electroplating, cold storage, plastic, chemical fiber, commercial concrete, laser, purification workshop, mechanical processing and other industries. It can precisely control the temperature required by modern industrial manufacturing, greatly improving efficiency and product quality. JIALIS chiller is easy to operate, reasonable in design and superior in quality, with more than 100 models, it is the best choice for modern industrial refrigeration.
Upport and Services:
Air Cooled Chiller technical support and service includes:
1. 24/7 customer support
2. Remote guidance installation and maintenance
3. Remote Diagnostics and Troubleshooting
4. Phone/Email Advice and Guidance
5. User friendly documentation and manuals
6. Software Updates and Upgrades
7. Cost price of spare parts and consumables
Packing and Shipping:
Air-cooled chillers are packaged and shipped in standard plywood wooden boxes. All components are secured and protected with a film, and the unit is then placed on a pallet for easy transport. And affix the shipping mark information label on the wooden box to ensure correct delivery.
