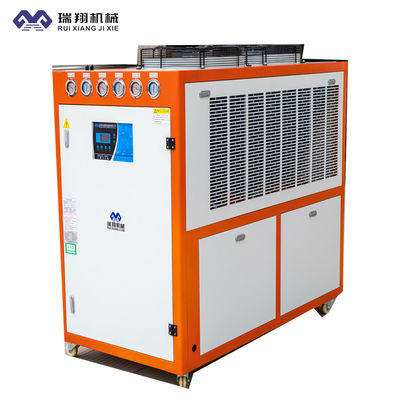

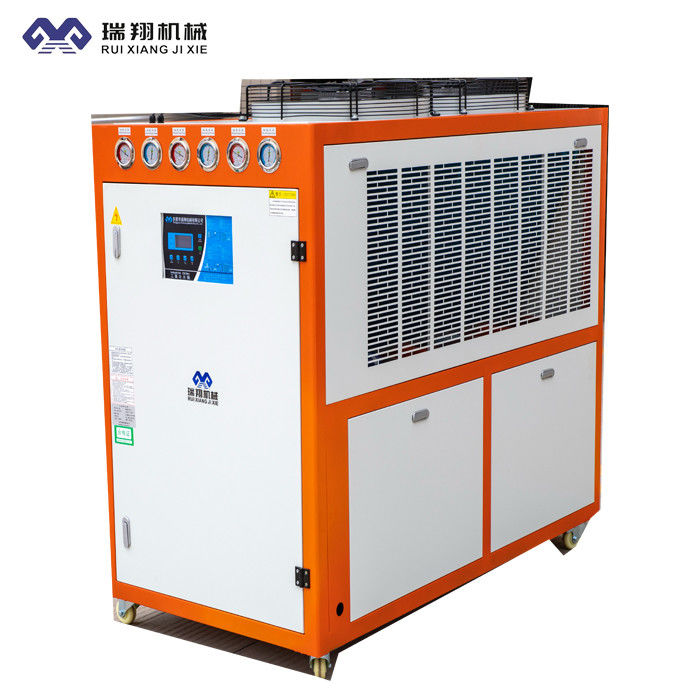

10HP Air Cooled Water Chiller 380V With Microprocessor Controller

10HP Air Cooled Chiller Easy To Install Long Lasting Stable Performance Water Chiller

Product Description:

The air cooled chiller, also known as an air-cooled box-type industrial chiller unit, utilizes a air-cooled heat dissipation design. It draws surrounding air into the equipment using built-in fans and dissipates heat through a condenser, thereby reducing the system temperature. It does not require an additional water cooling system and is relatively easy to install and maintain.

Air cooled chiller is suitable for places with limited space or where sufficient cooling water cannot be provided. However, the cooling efficiency is affected by ambient temperature and humidity, so it is typically used in applications with lower heat loads. Each model is equipped with a range of safety features, including motor overload protection, phase loss and phase reversal alarms, anti-freeze thermostats, pressure gauges, and more. These chiller units demonstrate excellent performance and have a longer lifespan. Throughout the entire operating cycle, a series of steps based on the fundamental principles of heat exchange are followed. They are particularly suitable for industries that require precise control and regulation of chilled water temperature, allowing for precise control within the range of 3°C to 50°C, makin them an important player in the modern industrial sector.





Working Principle:

When the air cooled chiller starts, the refrigerant absorbs the heat from the cooled object in the evaporator and vaporizes. The compressor continuously extracts the generated gas from the evaporator and compresses it into high-temperature, high-pressure vapor. The refrigerant vapor is then sent to the condenser, where it undergoes heat exchange with the air. After releasing heat, it condenses into a liquid. The liquid refrigerant, after being depressurized by the expansion valve, enters the evaporator where it vaporizes again, absorbing heat from the cooled object. This heat exchange process is repeated until the industrial water is cooled to the desired temperature.

Techinical Parameters:

Application Industry:

It is widely used in pharmaceutical, chemical, food, grease, coating, electroplating, cold storage, plastic, chemical fiber, commercial concrete, laser, purification workshop, mechanical processing and other industries. It can precisely control the temperature required by modern industrial manufacturing, greatly improving efficiency and product quality. JIALIS chiller is easy to operate, reasonable in design and superior in quality, with more than 100 models, it is the best choice for modern industrial refrigeration.
