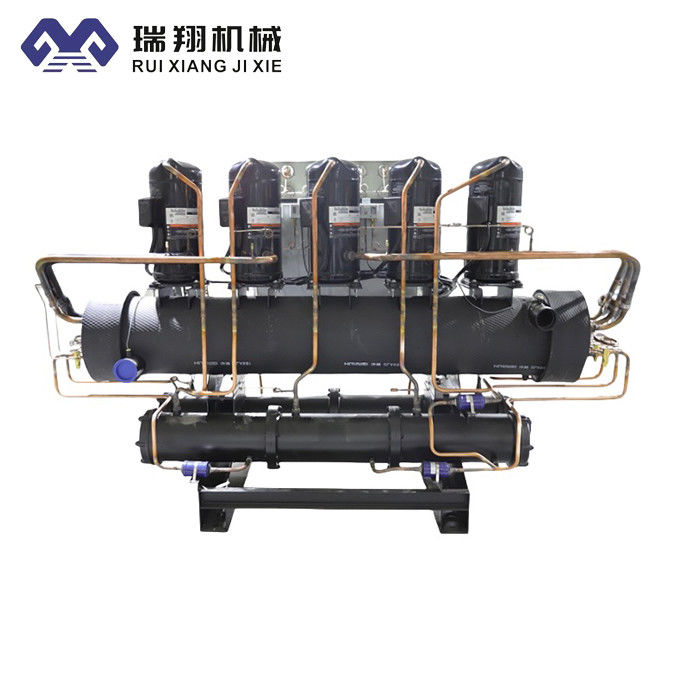

10 Ton Explosion Proof Chiller R22 To Meet Industrial Cooling Needs

10 Ton Explosion-Proof Water Cooler To Meet Industrial Cooling Needs

Production Features:

The main features of the air-cooled explosion-proof chiller include:

1. Explosion-proof design: The air-cooled explosion-proof chiller adopts an explosion-proof design, which can operate safely in flammable and explosive places to ensure production safety.

2. Air cooling: The air-cooled explosion-proof chiller adopts air cooling method and does not require water source, which reduces water consumption and discharge, and also reduces the cost of water treatment.

3. Environmental protection and energy saving: The air-cooled explosion-proof chiller uses environmentally friendly refrigerants and an efficient refrigeration system, which can reduce the impact on the environment and reduce energy consumption while ensuring the cooling effect.

Working Principle:

The air-cooled explosion-proof chiller mainly realizes refrigeration through a refrigeration system composed of a compressor, a

condenser, an evaporator and a fan. It works as follows:

1. The compressor compresses the low-temperature and low-pressure refrigerant gas into a high-temperature and high-pressure gas, which is then sent to the condenser.

2. The refrigerant gas in the condenser is cooled and condensed into a high-pressure liquid by exchanging heat with the outside air.

3. The high-pressure liquid is decompressed through the expansion valve, becomes a low-temperature low-pressure liquid, and then enters the evaporator.

4. The refrigerant liquid in the evaporator exchanges heat with the outside air, thereby absorbing the heat in the air, and evaporating the refrigerant liquid into a low-temperature and low-pressure gas.

5. The low-temperature and low-pressure gas enters the compressor to start a new refrigeration cycle.

At the same time, the air-cooled explosion-proof chiller also introduces air into the condenser and evaporator through the fan for cooling and heat exchange. Due to the air cooling method, no water source is required, and it is suitable for places where no water source is available. At the same time, the air-cooled explosion-proof chiller adopts an explosion-proof design, which can operate safely in flammable and explosive places to ensure production safety.

Techinical Parameters:

Application Industry:

The air-cooled explosion-proof chiller is mainly suitable for places requiring explosion-proof measures, such as chemical industry, petroleum, natural gas, medicine and other fields. The specific scope of application is as follows:

1.Chemical industry: Inflammable and explosive chemical substances are often involved in chemical production, so it is necessary to use explosion-proof chillers for cooling to ensure production safety.

2.Oil and natural gas: In the process of oil and natural gas extraction, flammable and explosive gases are often involved, so explosion-proof chillers are required for cooling to ensure production safety.

3.Medicine: Inflammable and explosive chemicals are often involved in pharmaceutical production, so explosion-proof chillers are required for cooling to ensure production safety.

4.Other industries: Explosion-proof chillers can also be used in other industries, such as mining, energy, military and other fields, to cool equipment involving flammable and explosive substances, so as to ensure production safety.

In short, the air-cooled explosion-proof chiller is mainly suitable for places that require explosion-proof measures, such as chemical industry, petroleum, natural gas, medicine and other fields. Air-cooled explosion-proof chillers can provide safe and reliable cooling solutions for these industries, ensuring production safety and equipment stability.

Automotive Manufacturing Chemical Engineering Electronics Industry Electroplating Industry
