Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | New |
| Certification: | ISO9001 |
| Model Number: | SC-60DWS3 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wooden case or Plastic film |
| Delivery Time: | 35 working days after got deposit |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Operation Voltage: | 50/60hz. 380V 3ph 50hz | Compressor Input Power: | 32kw |
|---|---|---|---|
| Cooling Capaicty: | 63kw(based On -10/-15C) | Glycol Liquid: | In/outlet -10C/-15C |
| Evaportor: | Dry Type Shell And Tube | Condenser: | Shell And Tube |
| Color: | Milk White Or Green Or Customize | Refrigerant: | R404a、R22 |
| Touch Screen: | 7 Inch Siemens | Application: | Ice Rink, Chemical Factory, Pharceutical Factory, Industrial Cooling |
| Highlight: | -35℃ Glycol Water Chiller,Siemens Touch Screen Glycol Water Chiller |
||
Product Description

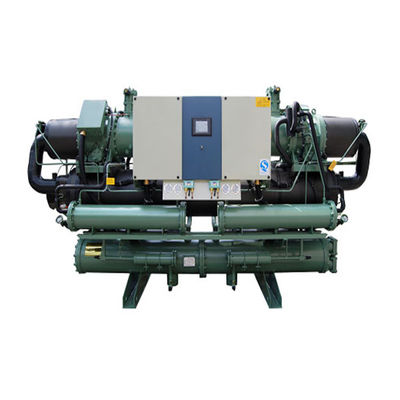

-15C -20C -25C -35C Low Temperature Water Cooled Chiller With 20%-50% Glycol Liquid To Make Deeply Chilled Water
Specification:
| Cooling capacity: (kw) | 63 | |
| Input power: (kw) | 31.4 | |
| Flow of 35% Glycol liquid: | 11.5 m3/h | |
| Flow of cooling water: | 16.2m3/h | |
| Number of Circuit | 1 | |
| In/outlet Glycol liquid temperature: | -10C/-15C | |
| Evaporator inlet/outlet pipes dia: | 2” | |
| Condenser inlet/outlet pipes dia: | 2” | |
| Water Side Max Pressure(Mpa) | 1 | |
| Capacity Control(%): | 0, 50%,100 % | |
| Power supply: | 380v-3ph-50hz | |
| Compressor: | Screw type | |
| Compressor Qty | 1 | |
| Condenser: | Shell and tube type | |
| Evaporator | Shell and tube type | |
| Refrigerant: | R404a | |
| Protection devices: | Reverse, over-flow, Exhaust air temp, high-low temp/pressure protection water flow protection. Anti-frozen protection. | |
Applications:
Water Chillers are applicable to places such as Ice Rink cooling, chemical factory, pharceutical factory, industrial cooling...
Notice: Any Non-standard design water chiller welcome to send us details information. OEM and Customize service available.
We have done many low temperature cooling project in domestic market and oversea market, If you want to discuss more for your own project,
Contact us as soon as you can.
