|Place of Origin:||China|
|Brand Name:||Water chiller|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set|
|Packaging Details:||Wooden case or Plastic film|
|Delivery Time:||30 working day after got deposit|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||100 sets/month|
|Chiller Type:||Water Cooled||Compressor:||Screw Or Scroll Type|
|Power Supply:||380V 3ph 50hz||Input Power:||115.0kw|
|Cooling Capacity:||545kw||Evaportor Water:||12C/7C Degree|
|Condenser:||Shell And Tube||Evaportor:||Shell And Tube|
|Chilled Water Flow:||93.7m3/h||Cooling Water Flow:||113.5m3/h|
|Refrigerant:||R407c||Control:||SCM Or PLC|
|Touch Screen:||7 Inch||Color:||Milk White Or Green Or Customize|
|Application:||Workshop, Big Shopping Mall, Office Building, Apartment|
380V 50hz Heat Exchanger Chiller System,
r407c Heat Exchanger Chiller System,
545kw Water Cooling Machine
Water Cooling Machine Heat Exchanger Chiller System
|Cooling capacity: (kw)||545|
|Input power: (kw)||115|
|Flow of chilled water: (L/min)||93.5|
|Flow of cooling water: (L/min)||118|
|Number of Circuit||2|
|Evaportor inlet/outlet pipes dia:||5”|
|Condenser inlet/outlet pipes dia:||5”|
|Water Side Max Pressure(Mpa)||1|
|Capacity Control(%):||0, 25%, 37.%, 50%,62.5%,75%,87.5%,100 %|
|Condenser:||Shell and tube type|
|Evaporator||Shell and tube type|
|Protection devices:||Reverse, over-flow, Exhaust air temp, high-low temp/pressure protection water flow protection. Anti-frozen protection.|
Water Chiller features:
This series have 20 kinds specification from 5 HP to 600HP with air cooled and water cooled ways which can meet demands of different customers and places. We also can customize according to customer's requirements
There are many air delivery and return ways which facilitate matching combination and we have introduced new air function which can effectively improve the air quality. Therefore, this design is applicable to a variety of engineering environment.
Compact structure which has small shape and the unit is easy to install, maintain and debug.
Famous brand accessories
Refrigeration system mainly adopt the well-known brand products, such as high-performance compressor, electric heating tube, the electrode humidifier, high efficiency low noise centrifugal fan, axial flow fan, etc., with stable and reliable performance.
Shell and tube type condenser and air-side heat exchanger adopts high-efficiency heat exchange tube which improves the thermal efficiency greatly and the independent refrigeration system which can adjust the boot operation of each system effectively according to the load is more energy-saving. We also can choose environment-friendly refrigerant 404a, etc
Unit is equipped with multiple safety protections, such as the high and low voltage, compressor blower overload, the insufficient cooling water discharge current, electric heating temperature is too high, humidification, etc., to ensure its safe and reliable
According to the specific requirements of application, the unit can make explosion-proof and anticorrosive processing which can be widely used in petroleum, chemical industry, metallurgy, military industry, pharmaceutical industry, etc

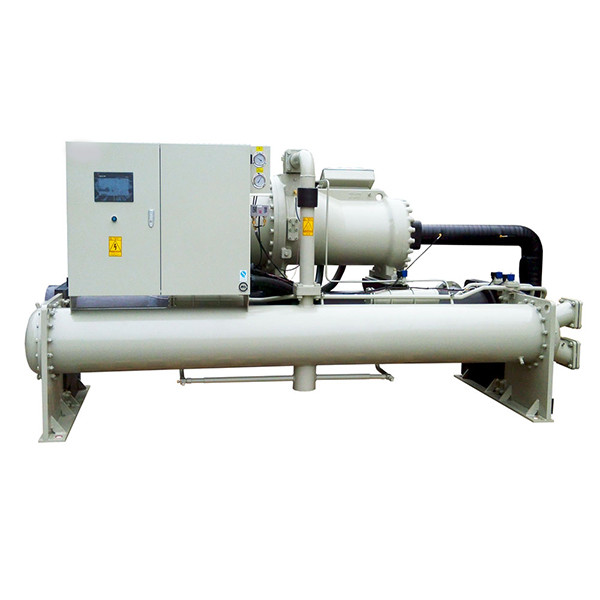

Product Main View.
Water Chillers are applicable to places such as Shopping mall, commercial builing Workship, hotels, restaurants, recreational centers, hospitals, dining halls, offices, cinemas, factories, and supermarkets, especially to those rising high requirement on noise reduction and ambient environment.
Notice: Any Non-standard design water chiller welcome to send us details information. OEM and Customize service available.
