Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | New |
| Certification: | ISO9001 |
| Model Number: | SC-100DWS3 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wooden case or Plastic film |
| Delivery Time: | 35 working days after got deposit |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Compressor: | Screw Low Temperature Type | Power Supply: | 380/400V 3ph 50hz |
|---|---|---|---|
| Input Power: | 38kw | Glycol Liquid: | -10C To -35C |
| Evaportor: | Customize Shell And Tube | Condenser: | Shell And Tube |
| Color: | Milk White Or Green Or Customize | Refrigerant: | R404a |
| Touch Screen: | 7 Inch | Application: | Ice Rink, Chemical Factory, Pharceutical Factory, Industrial Cooling |
| Glycol: | 15%-60% | ||
| High Light: | Glycol Water Cooled Chiller,38kw Water Cooled Chiller,R404a Glycol Water Chiller |
||
Product Description

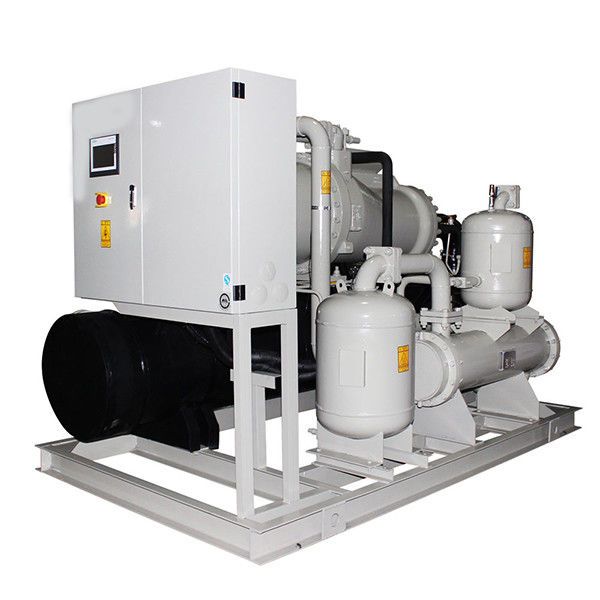

-15C Glycol Water Chiller Low Temperature Water Cooled Chiller With 25% Glycol Liquid Chemical Factory Cooling Progress
Specification:
| Cooling capacity: (kw) | 100 | |
| Input power: (kw) | 50.2 | |
| Flow of 35% Glycol liquid: | 28 m3/h | |
| Flow of cooling water: | 39.6m3/h | |
| Number of Circuit | 1 | |
| In/outlet Glycol liquid temperature: | -10C/-15C | |
| Evaporator inlet/outlet pipes dia: | 2-1/2” | |
| Condenser inlet/outlet pipes dia: | 2-1/2” | |
| Water Side Max Pressure(Mpa) | 1 | |
| Capacity Control(%): | 0, 50%,100 % | |
| Power supply: | 380v-3ph-50hz | |
| Compressor: | Screw type | |
| Compressor Qty | 1 | |
| Condenser: | Shell and tube type | |
| Evaporator | Customize Shell and tube type | |
| Refrigerant: | R404a | |
| Protection devices: | Reverse, over-flow, Exhaust air temp, high-low temp/pressure protection water flow protection. Anti-frozen protection. | |
Applications:
Water Chillers are applicable to places such as Ice Rink cooling, chemical factory, pharceutical factory, industrial cooling...
Notice: Any Non-standard design water chiller welcome to send us details information. OEM and Customize service available.
More Details Informations, Please contact.
Moblie: +8619124362193
Wechat: Jack2020323
