|Place of Origin:||China|
|Brand Name:||Water Chiller|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Woonden case or plastic film|
|Delivery Time:||30 working day after got deposit|
|Payment Terms:||T/T, Western Union, L/C, D/A, D/P, MoneyGram|
|Compressor:||Screw Or Scroll Type||Voltage:||380V 3ph 50hz|
|Input Power:||37.5kw||Cooling Capacity:||50HP|
|In/outlet Water:||12C/7C Degrees||Condenser:||Ripple Aluminum Fins Around Copper Tube|
|Refrigerant:||R404a,R407c||Control System:||Easy To Use|
R404a Industrial Water Chiller,
50 Tons Industrial Water Chiller
2021 Scroll/Screw Air Cooled 50tons R404a Industrial Water Chiller
Factory Direct Supplier Air Conditioner Screw Water Chiller
2021 cost effective 50HP air cooled industrial water chiller
|Air-Cooled Scroll Chiller||Specifications|
|Rated Cooling Capacity||×1000kcal/h||6.2||5.7||4||10.7||10.2||7.2||17.3||16.9||11.3||23.1||21.9||14.8|
|Input power KW||3.1||3.1||2.5||4.8||4.8||3.6||8.2||8.3||6.5||10.6||10.5||8.2|
|Complete current A||6||6||5.2||9.5||9.5||7.5||16||16.5||14.7||19.9||20.1||17.8|
|Protection Device||Phase sequence protection,overcurrent protection,Anti frozen protection,high and low voltage protection,Gas outlet temperature protection,water flow protection|
|Compressor||Input power KW||2.2||2.2||1.6||3.8||3.8||2.6||5.9||6||4.2||7.8||7.7||5.4|
|chilled water pump||Input power KW||0.6||0.6||1.5||1.5|
|Number of Refrigeration Circuit||1|
|Capacity Control %||0-100|
|Cooling fan||Input power KW||0.3||0.4||0.8||1.3|
|Evaporator||Coil Type||Shell-and-Tube Type|
|Dia.of pipe to Evaporator(inch)||1″||1″||1-1/2″||1-1/2″|
|Chilled Water Flow L/min||20.6||18.9||13.2||35.5||33.8||23.8||57.6||56.2||37.6||76.8||73.1||49.3|
|Running noise dBA||57||60||62||64|
|Tank Volume L||80||80||160||160|
|Total Weight kg||180||200||410||440|
|Outline dimension (L*W*H)mm||1100*800*1400||1100*800*1400||1600*1000*1650||1600*1000*1650|
1.Rated cooling capacity based on: Evaporator water inlet and outlet temperature 12℃/7℃,Ambient temperature range:35℃;, Fouling coefficient is 0.088m2.℃/KW;
2. Chillled water temperature range: 5℃~20℃;
3. Lowest ambient temperature range: 0℃;
4. Specifications and dimensions are subject to change due to product improvement without notice.
Water Chiller features:
This series have 20 kinds specification from 5 HP to 600HP with air cooled and water cooled ways which can meet demands of different customers and places. We also can customize according to customer's requirements
There are many air delivery and return ways which facilitate matching combination and we have introduced new air function which can effectively improve the air quality. Therefore, this design is applicable to a variety of engineering environment.
Compact structure which has small shape and the unit is easy to install, maintain and debug.
Famous brand accessories
Refrigeration system mainly adopt the well-known brand products, such as high-performance compressor, electric heating tube, the electrode humidifier, high efficiency low noise centrifugal fan, axial flow fan, etc., with stable and reliable performance.
Shell and tube type condenser and air-side heat exchanger adopts high-efficiency heat exchange tube which improves the thermal efficiency greatly and the independent refrigeration system which can adjust the boot operation of each system effectively according to the load is more energy-saving. We also can choose environment-friendly refrigerant 404a, etc
Unit is equipped with multiple safety protections, such as the high and low voltage, compressor blower overload, the insufficient cooling water discharge current, electric heating temperature is too high, humidification, etc., to ensure its safe and reliable
According to the specific requirements of application, the unit can make explosion-proof and anticorrosive processing which can be widely used in petroleum, chemical industry, metallurgy, military industry, pharmaceutical industry, etc

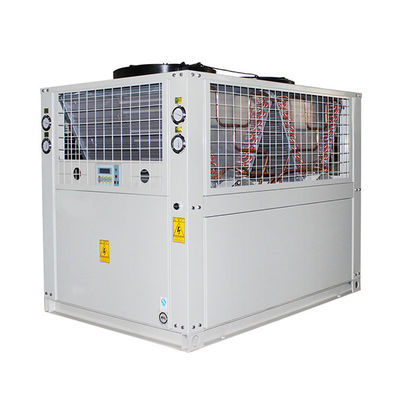

Product Main View.
Water Chillers are applicable to places such as Shopping mall, commercial builing Workship, hotels, restaurants, recreational centers, hospitals, dining halls, offices, cinemas, factories, and supermarkets, especially to those rising high requirement on noise reduction and ambient environment.
Notice: Any Non-standard design water chiller welcome to send us details information. OEM and Customize service available.
