Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | NEW |
| Certification: | ISO9001 |
| Model Number: | FP-58 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5sets |
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 20 days after got deposit payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10000sets/month |
|
Detail Information |
|||
| FCU Type: | Chilled Water | Chilled Temperature: | In/outlet 12C/7C |
|---|---|---|---|
| New Design: | Fresh Air Connection | Type: | Horizontal Concealed Type |
| Voltage: | 220V 1ph 50hz | Customize Voltage: | Available |
| Air Flow: | 580m3/h | Net Weight: | 16kgs |
| In/outlet Pipe: | DN20 | Drain Water Pipe: | 25mm |
| Application: | Hotel, Office, Shopping Mall, Hospital | ||
| High Light: | Horizontal Concealed Fan Coil Units,DN20 Concealed Fan Coil Units,580m3/h concealed fan coil units |
||
Product Description

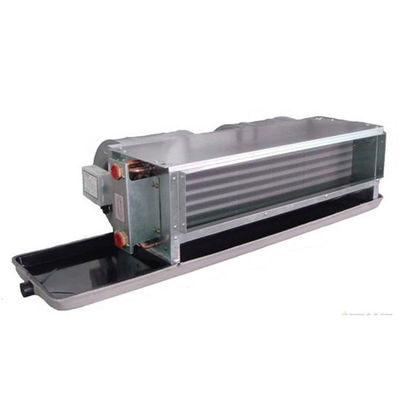

Commerical Building Shopping Mall Hotel Horizontal Concealed Type Chilled Water Fan Coil Unit
Product Application:
Fan coil units are mainly composed of centrifugal fans and coil heat exchangers.It is the terminal device of the central air conditioning system.It is widely used in hotels, restaurants, factories, hospitals, exhibition galleries, shopping malls and moving buildings.It is used to meet the requirements of cooling, dehumidification, heating , creating a fresh and tranquil working and living environment.
| Model | FP-34KM | FP-51KM | FP-68KM | FP-85KM | FP-102KM | FP-136KM | FP-170KM | FP-204KM | FP-238KM | ||
| Cooling | Cooling capacity | KW | 2.0 | 2.7 | 3.7 | 4.5 | 5.6 | 7.0 | 9.1 | 10.8 | 12.6 |
| Water Flow | L/h | 345 | 470 | 640 | 780 | 970 | 1260 | 1710 | 1920 | 2160 | |
| Water Resistance | Kpa | 7 | 9 | 11 | 16 | 17 | 18 | 19 | 19 | 22 | |
| Heating | Heating capacity | KW | 2.8 | 4.2 | 5.6 | 7.0 | 8.4 | 11.2 | 13.9 | 16.7 | 19.2 |
| Fan | Type | Centrifuge | |||||||||
| Size | mm | Φ315 | Φ315 | Φ315 | Φ380 | Φ380 | Φ380 | Φ476 | Φ476 | Φ476 | |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Electrical Data | Power Supply | V/Ph/Hz | 220/1/50 | ||||||||
| Input Power | W | 39 | 52 | 62 | 76 | 96 | 132 | 152 | 189 | 220 | |
| Running Current | A | 0.18 | 0.24 | 0.27 | 0.33 | 0.38 | 0.58 | 0.78 | 0.80 | 1.07 | |
| Air Flow | High/Middle/Low | m3/h | 340/280/180 | 510/390/260 | 680/520/350 | 850/640/430 | 1020/790/520 | 1360/1030/690 | 1700/1290/860 | 2040/1500/1030 | 2380/1800/1200 |
| Noise | dB(A) | 37 | 39 | 41 | 43 | 45 | 46 | 47 | 50 | 52 | |
| Controller | Remote Control | ||||||||||
| Unit Size (L x W x H) | mm | 580 x 580 x 250 | 710 x 710 x 290 | 832 x 832 x 290 | |||||||
| Panel Size | mm | 650 x 650 x 30 | 800 x 800 x 30 | 950 x 950 x 30 | |||||||
| Net Weight | Kg | 20 | 25 | 34 | |||||||
| Water Pipe size | Water Inlet | in | DN20 | ||||||||
| Water Outlet | in | DN20 | |||||||||
| Condensing water | mm | 25 | |||||||||
We can do customize depending your requirement, Get more information and discuss in deeply, offer the best solution
More Details Can contact: +8619124362193 , Wechat ID Jack2020323.
