Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | New |
Certification: | ISO9001 |
Model Number: | SC-300CCU3 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | USD 2,000~30,000 |
Packaging Details: | Wooden case or Plastic film |
Delivery Time: | 35 days after got deposit payment |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 50 sets/month |
Detail Information |
|||
Place Of Origin: | Guangzhou China | Power Source: | Electric |
---|---|---|---|
Compressor: | Danfoss, Copeland, Ect | Power Supply: | 220-460V- 3ph- 50-60hz |
Refrigerant: | R404a,R22. R23 | Cold Room: | Fruit, Meat, Fish, Seafood, Vegetable |
Functions: | Frozen Food Storage | Wall Panel: | PU Sandwich |
Key Selling Point: | Energy Saving | Color: | Green And Black |
Highlight: | Modular Freezer Room Condensing Unit,Two Compressors Freezer Room Condensing Unit,Three Compressors cold room chiller unit |
Product Description

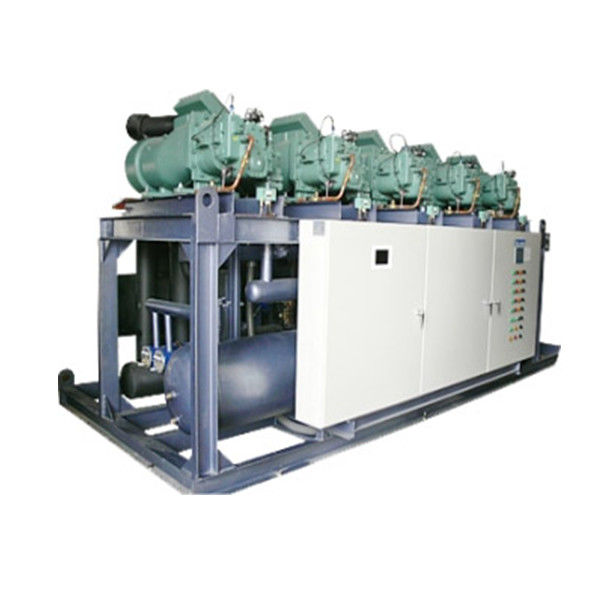

Modular Two Three Compressors Cold Room Condensing Unit Integrated Automatic Control System
Applications
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Water defrosting evaporator defrost faster, save operating costs.
Cold storage door with anti-shock protection, an increase of reliability.
(1) Temperature range: -60ºC~+20ºC are all available.
(2) Size: Customize.
(3) Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
(4) Fully automatic control system.
(5) Easy to install and dismantle
(6) Temperature Alarm
(7) Data Logger
(8) PLC electric control ( LG,SIMENS, OMRON..famous parts)
(9) Refrigerant:R22,R404
Compressor model | 4FES-3 | 4EES-4 | 4DES-5 | 4VES-7 | 4TES-9 | 4PES-12 | 4NES-14 | 4HES-18 | 4GE-23 | ||
Applicable Temperature(℃) | -20℃ ~ -35℃ | ||||||||||
Refrigerant | R404A | ||||||||||
Condenser | Quantity of Fan(pcs) | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 | |
Power of Fan (w) | 2*135 | 2*190 | 2*190 | 2*190 | 4*135 | 4*190 | 4*190 | 4*190 | 4*250 | ||
Ref.Capacity of condensing units |
Evaporating Temperature -25℃ |
Ref. Capacity (w) |
4640 | 5890 | 7030 | 8240 | 10280 | 11320 | 13950 | 19880 | 23400 |
Power (w) | 3060 | 3840 | 4550 | 5080 | 6350 | 6880 | 8580 | 12000 | 14270 | ||
Evaporating Temperature -30℃ |
Ref. Capacity (w) |
3590 | 4540 | 5420 | 6140 | 7760 | 8410 | 10520 | 15320 | 15320 | |
Power (w) | 2660 | 3320 | 3940 | 4260 | 5380 | 5740 | 7240 | 10350 | 10350 | ||
Coupling | Tube coupling | 12 | 12 | 12 | 16 | 16 | 16 | 16 | 16 | 22 | |
Suction coupling | 22 | 28 | 28 | 28 | 35 | 35 | 35 | 42 | 54 | ||
Overall dimension |
Lenght (A) mm | 940 | 1000 | 1000 | 1010 | 1170 | 1170 | 1170 | 1200 | 1340 | |
Width(B) mm | 820 | 820 | 820 | 820 | 900 | 900 | 900 | 900 | 900 | ||
Height (H) mm | 540 | 590 | 590 | 690 | 1020 | 1120 | 1120 | 1320 | 1420 |
