Screw Water-cooled Refrigerator Water Recirculating Chiller

Product Details:
Place of Origin: China
Brand Name: Water chiller
Certification: ISO9001
Model Number: SC-780WCD3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case or Plastic film
Delivery Time: 30 working day after got deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets/month

Detail Information

Working Temperatu: 12℃/7℃;30℃/35℃ Electriacl Prats: Schneider Or LG Brand
Warranty: 1 Year Cooling Source: Water Cooled
After-sales Service: Online Support Condition: New
Condenser: Shell And Tube Evaportor: Shell And Tube
Refrigerant: R22 Application: Industry Cooling, Commercial Central Air-conditioning
Trial Test: Before Shipment

Product Description

Screw Water-cooled Refrigerator Water Recirculating Chiller




Cooling capacity: (kw) 320
Input power: (kw) 72
Flow of chilled water: (L/min) 55
Flow of cooling water: (L/min) 67.4
Number of Circuit 1
Evaportor inlet/outlet pipes dia: 4”
Condenser inlet/outlet pipes dia: 4”
Water Side Max Pressure(Mpa) 1
Capacity Control(%): 0, 50%,100 %
Power supply: 380v-3ph-50hz
Compressor: Screw type
Compressor Qty 1
Condenser: Shell and tube type
Evaporator Shell and tube type
Refrigerant: R22
Protection devices: Reverse, over-flow, Exhaust air temp, high-low temp/pressure protection water flow protection. Anti-frozen protection.


Water flood screw units: high efficiency, energy saving, high reliability, simple and convenient control.

The enhanced heat exchange tube can significantly improve the heat transfer capacity, and the combination with twin-screw compressor technology can greatly improve the system efficiency.

Multi-compressor design not only has higher energy efficiency of partial load, but also can make the unit better standby;

Siemens controller is equipped with touch liquid crystal operation screen, which can easily realize the operation and control of the unit.

At the same time, we abandon some flashy functional design, based on the concept of simple operation and reliable performance, launched this economical and practical double screw chiller for customers.

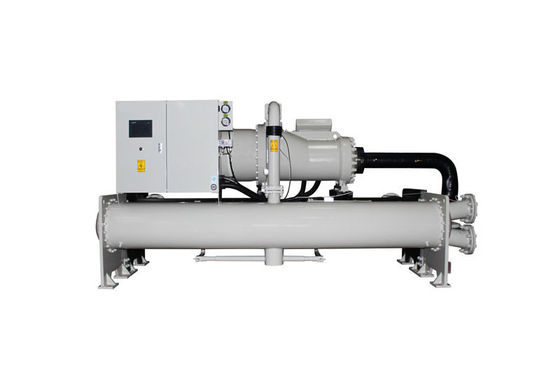

Product Main View.

 Screw Water-cooled Refrigerator Water Recirculating Chiller 0


*Widely applied to plastic,electroplating,hardware,

dyeing and finishing,injection molding,cold bath sauna etc.


Unit Features(Water-Cooled Type):

*Could be installed in machine room

*Chilled water pump built in

*Elegant appeatance,small size

*Large cooling capacity

Screw Water-cooled Refrigerator Water Recirculating Chiller 1Screw Water-cooled Refrigerator Water Recirculating Chiller 2

Screw Water-cooled Refrigerator Water Recirculating Chiller 3Screw Water-cooled Refrigerator Water Recirculating Chiller 4
