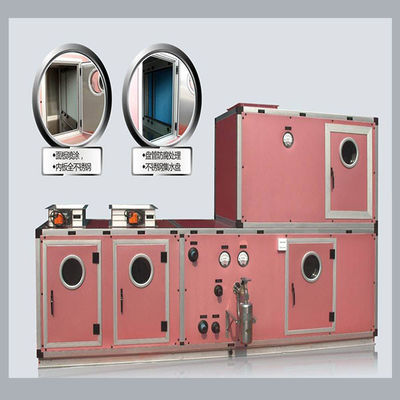

Pink 50mm PU Panel Clean Type AHU Air Handling Unit

Product Details:
Place of Origin: China
Brand Name: New
Certification: ISO9001, CE,
Model Number: SC-5000AHU3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 35 days after got deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100sets/month

Detail Information

AHU Type: Modular Type Power Supply: 380V 3ph 50hz
Air Flow Range: 2000~50000m3/h Double Skin Panel: 25mm PU Panel
Function: Air Conditioner Terminal Unit Color: Pink
Static Pressure: 150-500Mpa Air Valve: Manual Or Automatic
High Light:

Clean Type AHU Air Handling Unit

,

50mm PU Panel AHU Air Handling Unit

,

50000m3/h fresh air handling units

Product Description

High End Pink Color 50mm PU panle Clean Type Air Handing Unit For Pharmaceutical and Test Central



· Application Environment

AIR-ERV air to air heat exchanger core are widely used for different industry air exchanger, heat recovery, cooling or heating and dehumidification. Such as in HVAC, Telecom, Power Supply, Textile Industry, Automobile, Food Industry, Agriculture, Animal husbandry, Tobacco barn, Drying industry, Welding industry, Boiler Industry and so on.

· Feature

Adopt antiseptic hydrophilic aluminium foil, resistant to corrosion, with long service life.

Apply to special occasions of epoxy resin aluminum foil, corrosion resistance stronger.

Many size hrat exchanger core ( plate distance 2.5 ~ 10mm ) for your choice.

Module structure, any sine can be praided, no running components, low maintenance cost.

Compact struxture, small volume, suitable for various occasions.

· Production Technology

The surface of heat exchanger core was processed with spiral wave heat transfer enhancement techniques, increased the 10% heat transfer area.

Convex and concave air channel, ensure the strength and tightness of heat exchanger core, could bear high pressure.

Cross air channel, double folding process of the face side edges,which is equal to 5 times material thickness, ensure the high intensity and tightness.

All joints are airproofed by airproof glue, ensured that the heat exchanger has excellent air tightness.

Advantage:

1) The unit is designed as structure compact, good looking, low noise, light weight;
2) Adopt nylon-web plate filter, providing convenient drawing;
3) The centrifugal fan with double inlets is used to keep it running stable and with less noise;
4) The condensed water tray is made of stainless steel or galvanization steel, free from rust and erosion;
5) It can be matched with protection device and invert.



Product Application



Pink 50mm PU Panel Clean Type AHU Air Handling Unit 0

Pink 50mm PU Panel Clean Type AHU Air Handling Unit 1

Pink 50mm PU Panel Clean Type AHU Air Handling Unit 2



1/Both supply fan and exhaust fan are built inside tobring in fresh air and exhaust out the stale

indoor air as well, thus to keep indoor space in natural comfort. 2/Built-in heat exchanger

(rotary heat exchanger or plate heat exchanger) transfers energy contained in the outgoing

indoor air to the coming fresh air,thus fresh air is precooled or preheated. 3/Various

functional sections such as filter section,cooling/heating section, humidifying section etc.



Pink 50mm PU Panel Clean Type AHU Air Handling Unit 3Pink 50mm PU Panel Clean Type AHU Air Handling Unit 4

Pink 50mm PU Panel Clean Type AHU Air Handling Unit 5Pink 50mm PU Panel Clean Type AHU Air Handling Unit 6



Job Reference:

Pink 50mm PU Panel Clean Type AHU Air Handling Unit 7



1) We produce high quality HVAC products based on clients' need and help clients doing project design.

2) We offer a package (turn-key) service including engineering, design, installation, after-sale service, etc.

3) We are especially professional and strong in cleanroom HVAC engineering.
