20HP Water Cooled Water Chiller For Central Air Conditioning System

Product Details:
Place of Origin: China
Brand Name: Water chiller
Certification: ISO9001
Model Number: SC-300WCD3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden case or Plastic film
Delivery Time: 30 working day after got deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets/month

Detail Information

Condition: New After-Sales Service: Online Technical Help
Operation Voltage: 400V 3ph 50hz Input Power: 171kw
Cooling Capacity: 602kw Evaportor Water: 12C/7C Degree
Condenser/Evaportor: Carbon Steel Shell And Copper Tube Refrigerant: R410a, R407c,R134a
Color: Milk White Application: Workshop, Big Shopping Mall, Office Building, Apartment
High Light:

20HP Water Cooled Water Chiller

,

R134a Water Cooled Water Chiller

Product Description

Water Cooled Chiller For Big capacity Central Air-conditioning Cooling System



2021 Hot Water Big Capacity Air conditioner Water Cooled Water Chiller for central air-conditioning system





Cooling capacity: (kw) 602
Input power: (kw) 171
Flow of chilled water: (m3/h) 103.5
Flow of cooling water: (m3/h) 124.2
Number of Circuit 2
Evaportor inlet/outlet pipes dia: 5”
Condenser inlet/outlet pipes dia: 5”
Water Side Max Pressure(Mpa) 1
Capacity Control(%): 0, 25%, 37.%, 50%,62.5%,75%,87.5%,100 %
Power supply: 380v-3ph-50hz
Compressor: Refcomp Screw type
Compressor Qty 2
Condenser: Shell and tube type
Evaporator Shell and tube type
Refrigerant: R407c/R410a
Protection devices: Reverse, over-flow, Exhaust air temp, high-low temp/pressure protection water flow protection. Anti-frozen protection.



Remark:

1. The capacity is according to the following parameters: ambient temperature:

35 °inlet/outlet chilled water temperature 12 ° C / 7 ° C



2. The specifications above are subject to change without notice.



3. Conversion of units:1kw cooling capacity=860kcal/hr

1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW



Features:

Fan with heavy air throw,low noise

Equipped with moveable wheels

With high&low vlotage protection,compressor overlodad protection

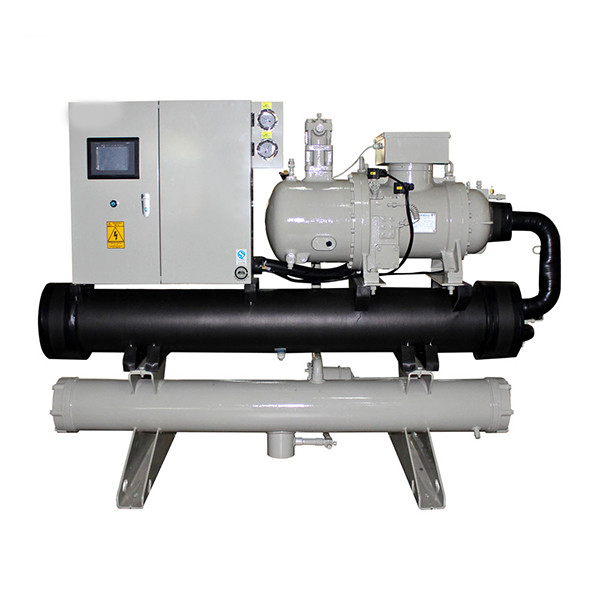

Product Main View.




20HP Water Cooled Water Chiller For Central Air Conditioning System 0

Applications:



Water Chillers are applicable to places such as Shopping mall, commercial builing Workship, hotels, restaurants, recreational centers, hospitals, dining halls, offices, cinemas, factories, and supermarkets, especially to those rising high requirement on noise reduction and ambient environment.



Notice: Any Non-standard design water chiller welcome to send us details information. OEM and Customize service available.



20HP Water Cooled Water Chiller For Central Air Conditioning System 120HP Water Cooled Water Chiller For Central Air Conditioning System 2
